Waratah — Granny Flat
Home/Models/Waratah

Granny Flat

The Waratah

The Waratah offers the perfect blend of comfort and elegance in a sleek 10m x 4.2m footprint.

2.

Sleeps

1.

Bedroom

1.

Bathroom

33.6 m²

Floor Area

The Design

About the Waratah

The Waratah offers the perfect blend of comfort and elegance in a sleek 10m x 4.2m footprint. Designed with modern living in mind, this one-bedroom modular granny flat features a built-in covered alfresco area ideal for outdoor entertaining, a full-size kitchen with contemporary finishes, and a designer-style living room that maximises space and natural light. Whether you’re accommodating family, downsizing, or creating an investment opportunity, The Waratah delivers style, practicality, and lasting value in one beautifully crafted home.

Get Instant Pricing Full Architectural Drawings Enquire about the Waratah

Gallery

Inside the Waratah

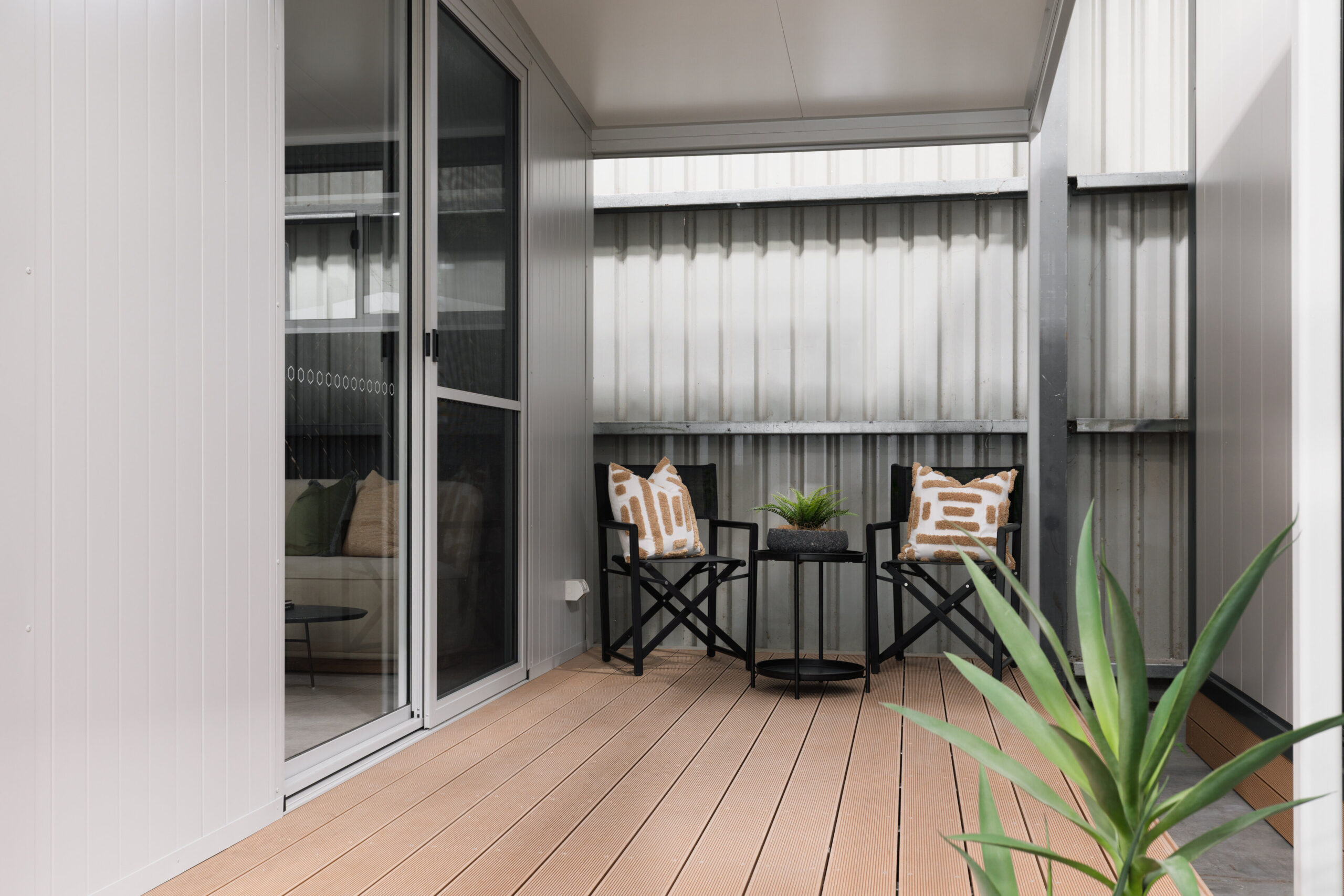

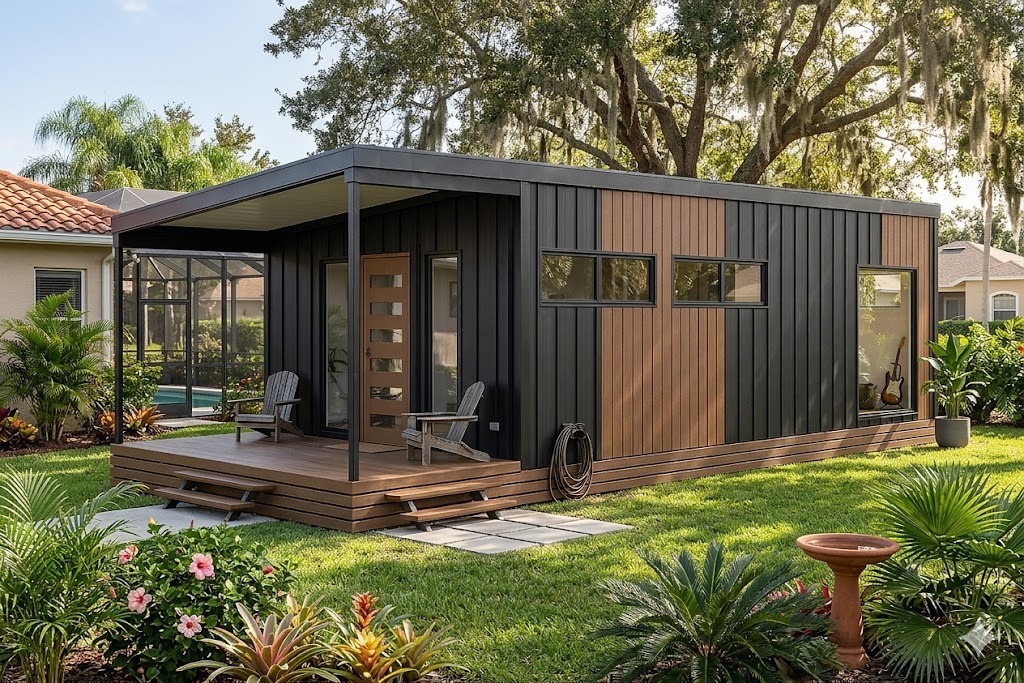

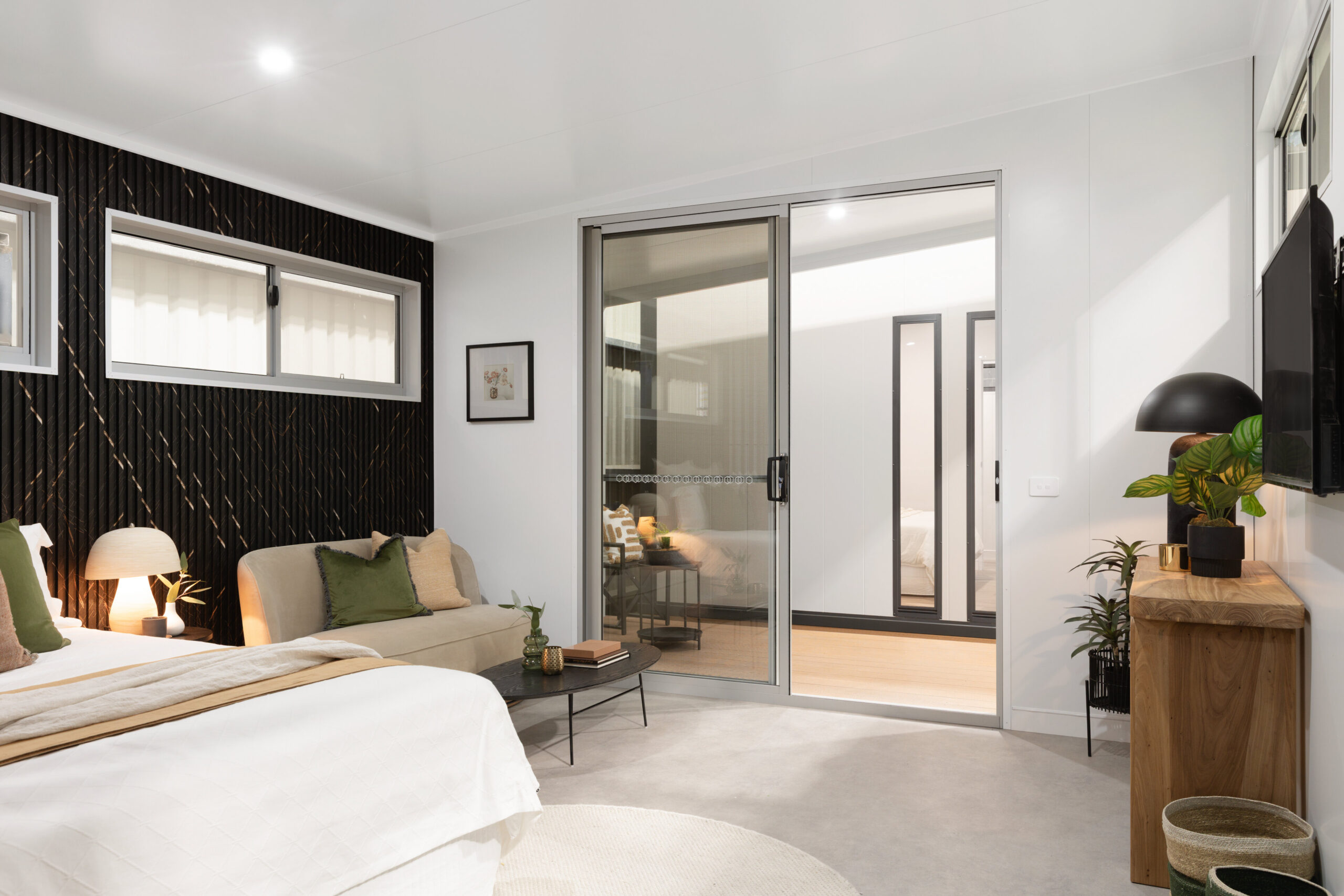

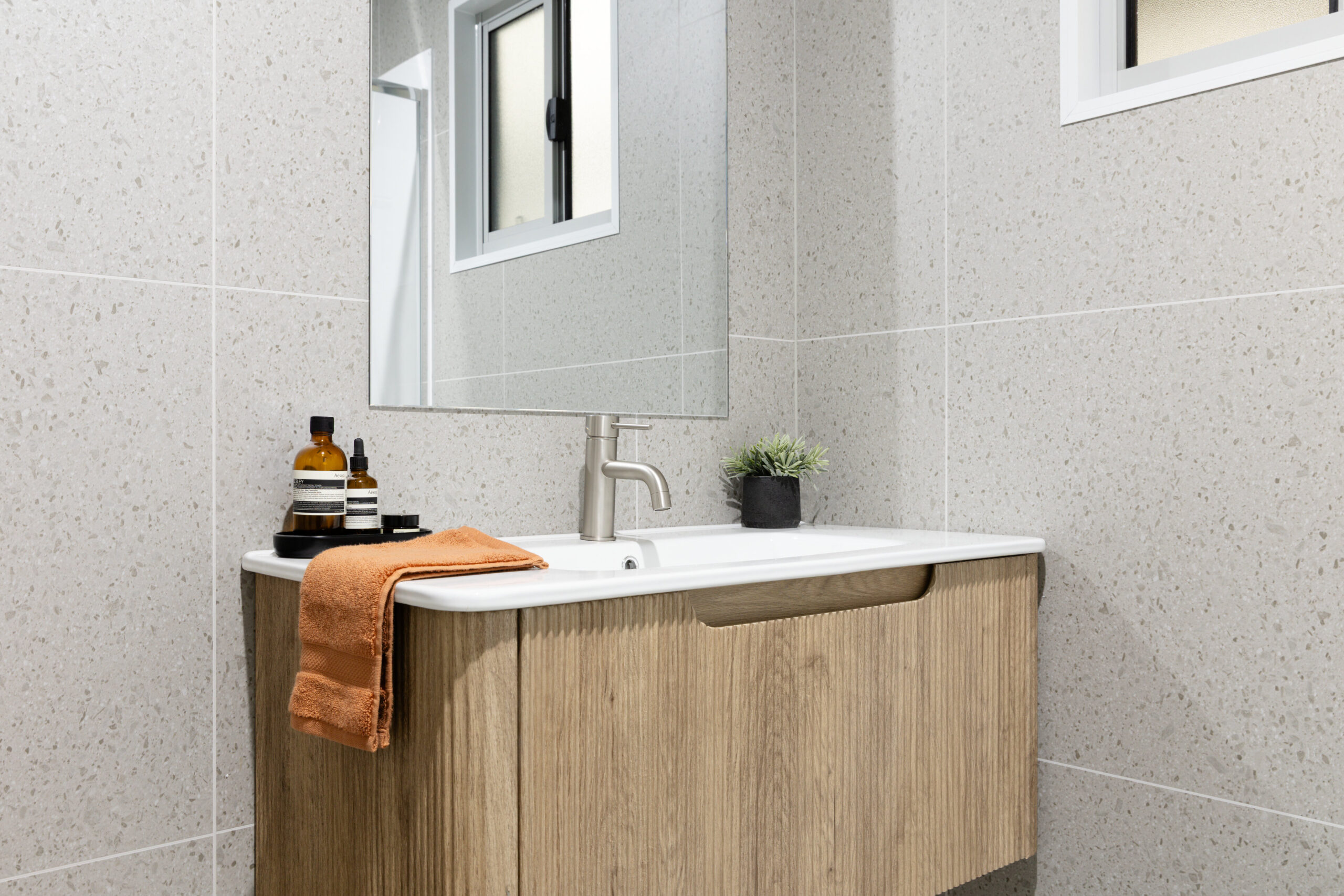

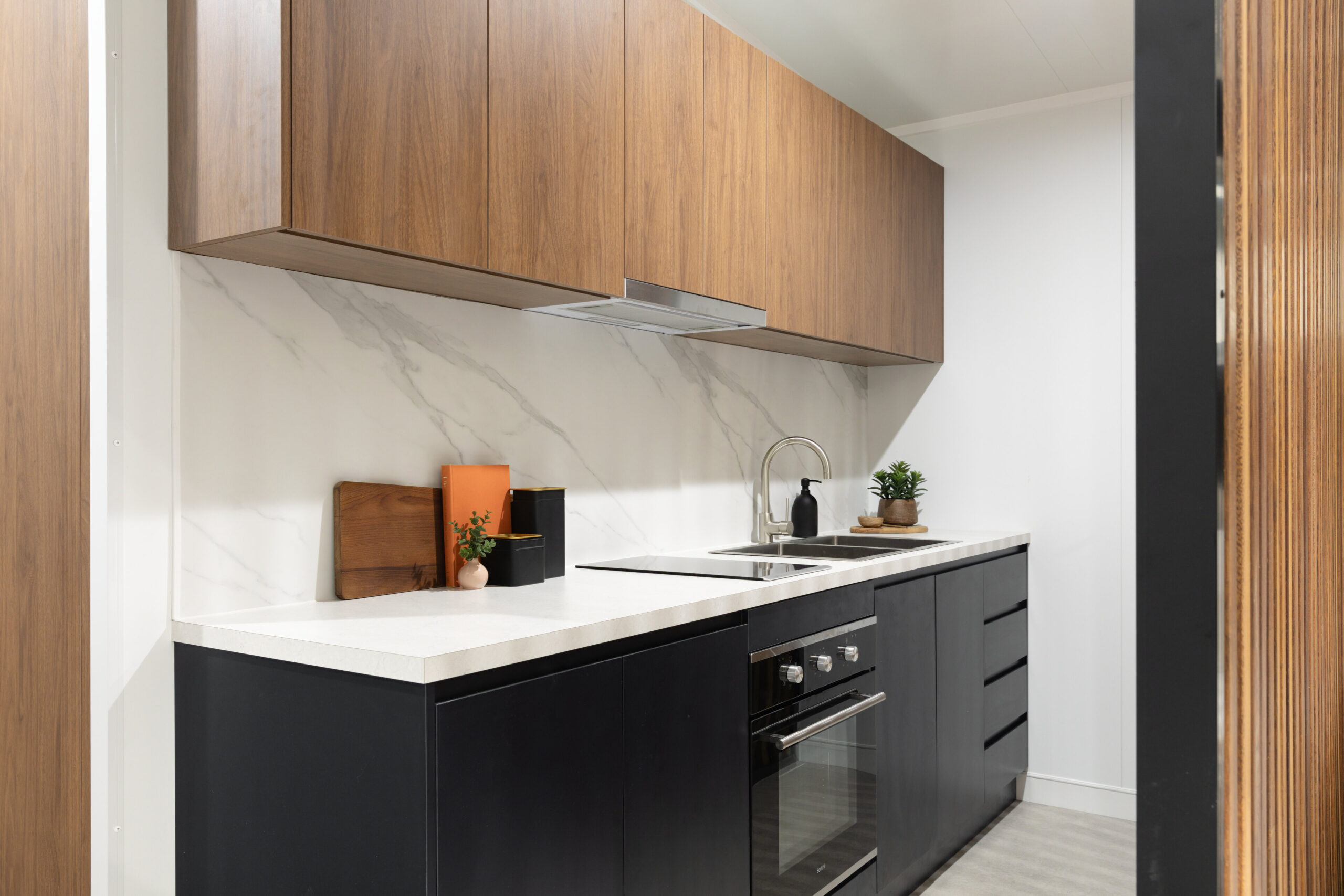

Waratah — photo 1 Waratah — photo 3 Waratah — photo 4 Waratah — photo 5 Waratah — photo 6

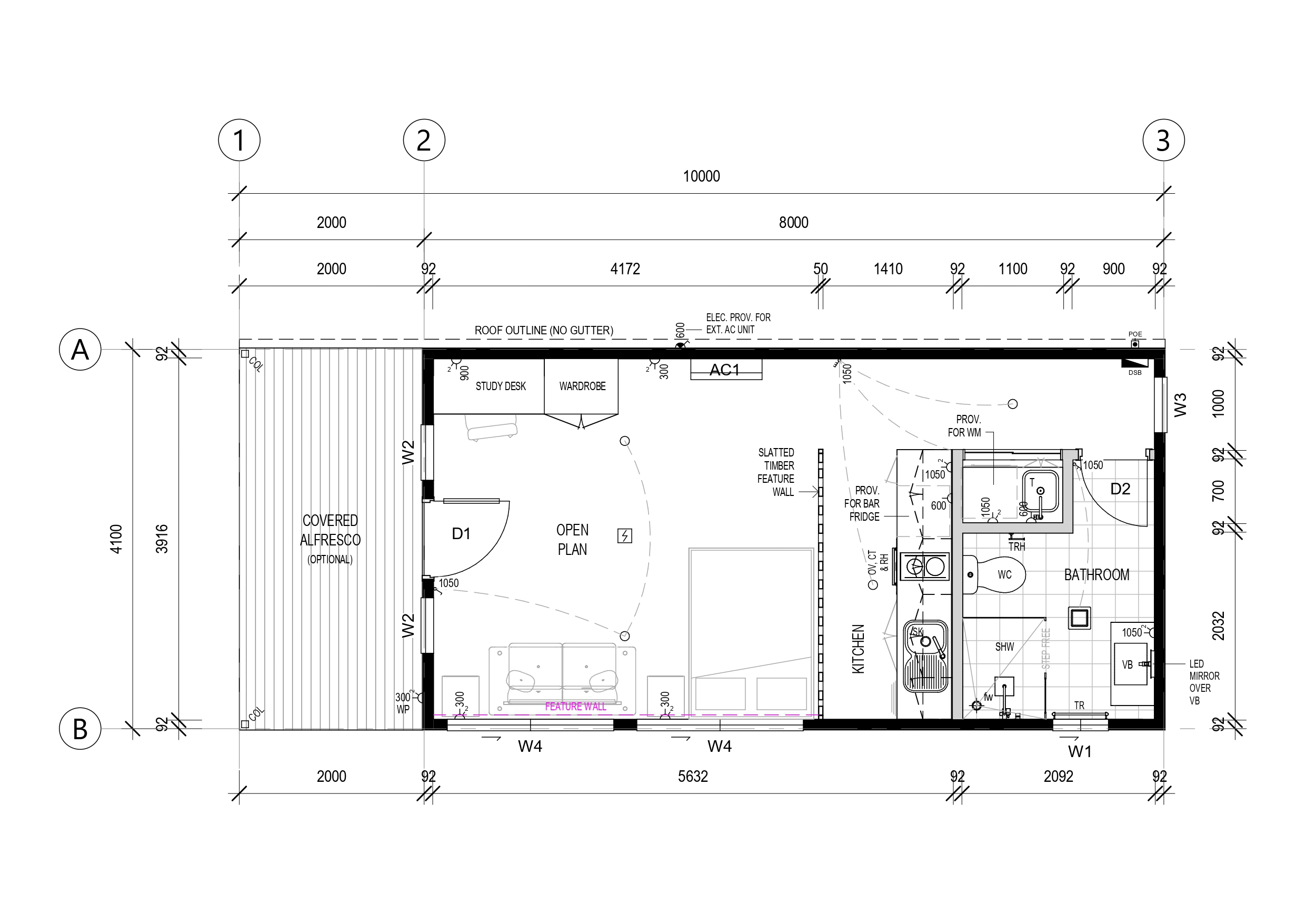

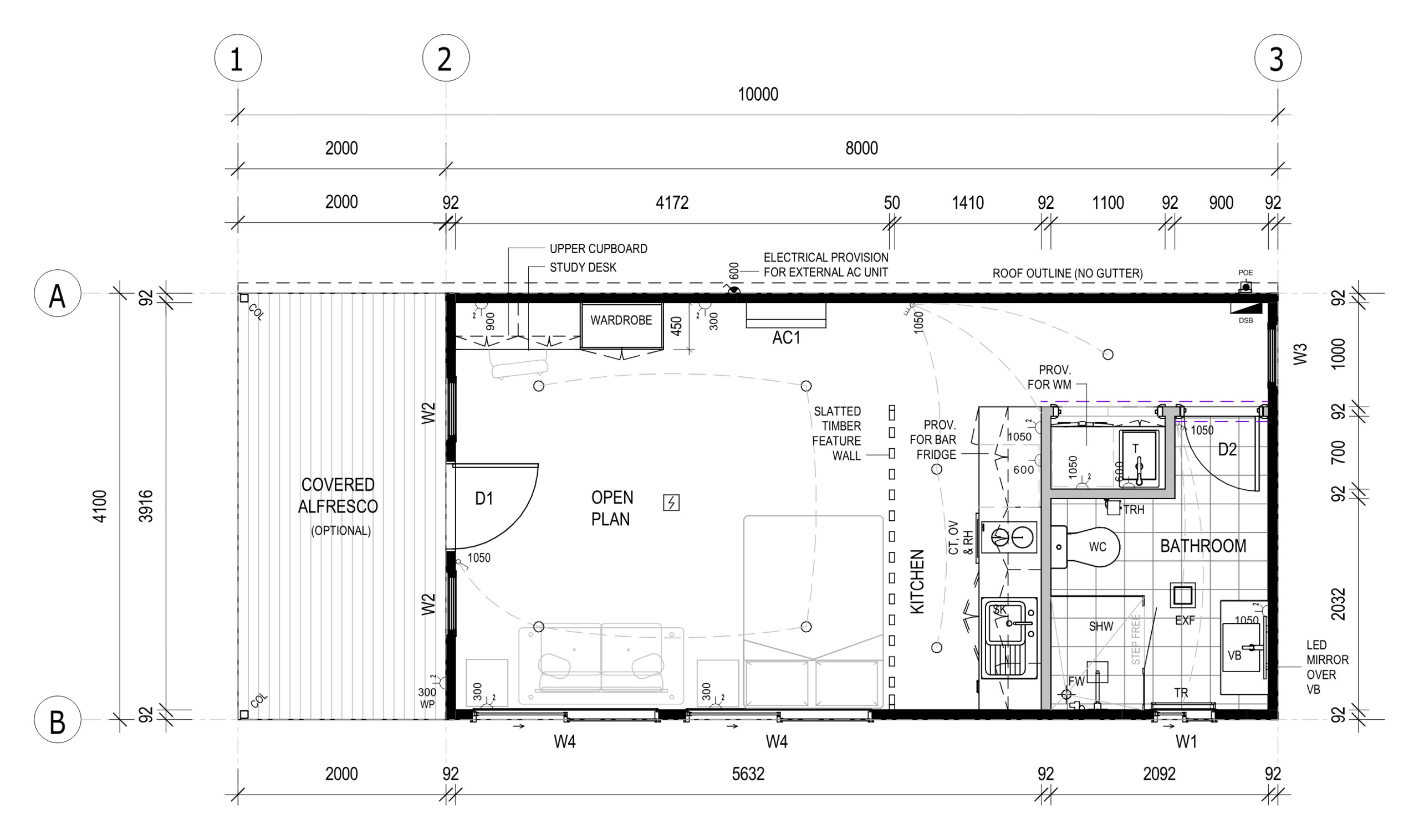

Floor Plan

Layout & dimensions

Waratah floor plan

Specifications

Engineered to last

Sub-Floor System

  • Skid beams: W10x22 steel skid beam system

Floor System

  • Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
  • Insulation – u/floor: R15 (or equiv.) minimum insulation value
  • Flooring: 3/4″ structural plywood
  • Floor covering: SPC planks (stone plastic composite core)
  • Decking: Composite timber decking

Wall System

  • Framing: 92mm (or equiv.) engineered steel frame
  • Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
  • Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
  • Internal: 5/8″ drywall, set & painted
  • Bathroom: Lined with SPC sheets

Roof System

  • Roof system: Engineered steel frame/rafter system
  • Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
  • Roofing: Steel panel roofing
  • Internal: 5/8″ drywall, set & painted (square set)
