Granny Flat

The Esperance

The Esperance takes comfort to the next level with two bedrooms, including a master with ensuite, plus an additional bathroom.

4.

Sleeps

2.

Bedrooms

2.

Bathrooms

54.6 m²

Floor Area

The Design

About the Esperance

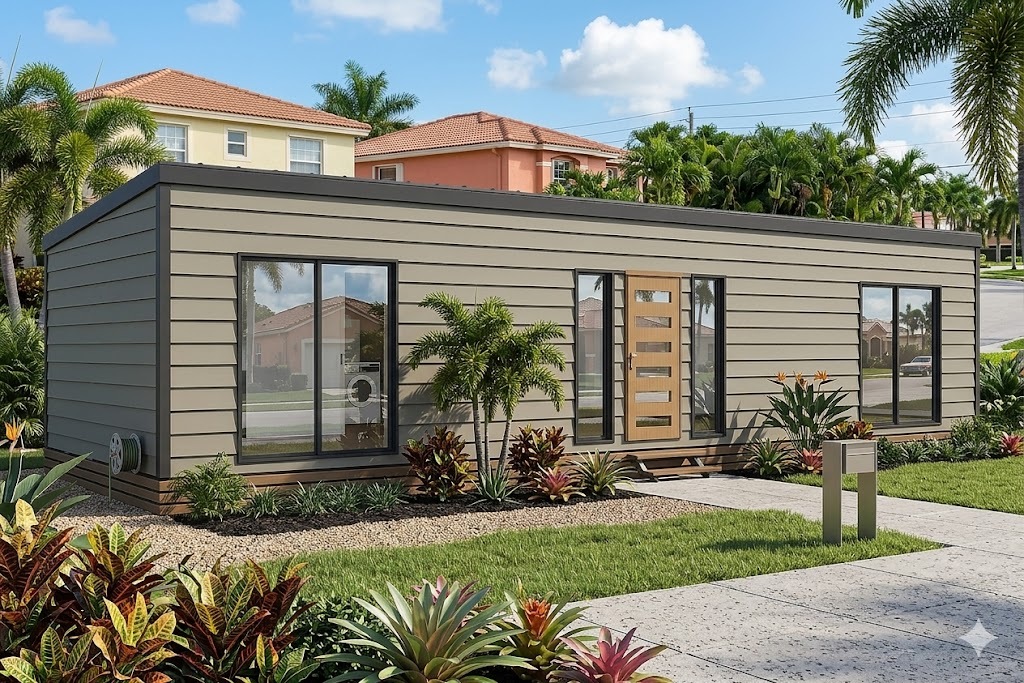

The Esperance takes comfort to the next level with two bedrooms, including a master with ensuite, plus an additional bathroom. Its 13m x 4.2m layout is perfect for families or dual-living arrangements.

Get Instant Pricing Full Architectural Drawings Enquire about the Esperance

Gallery

Inside the Esperance

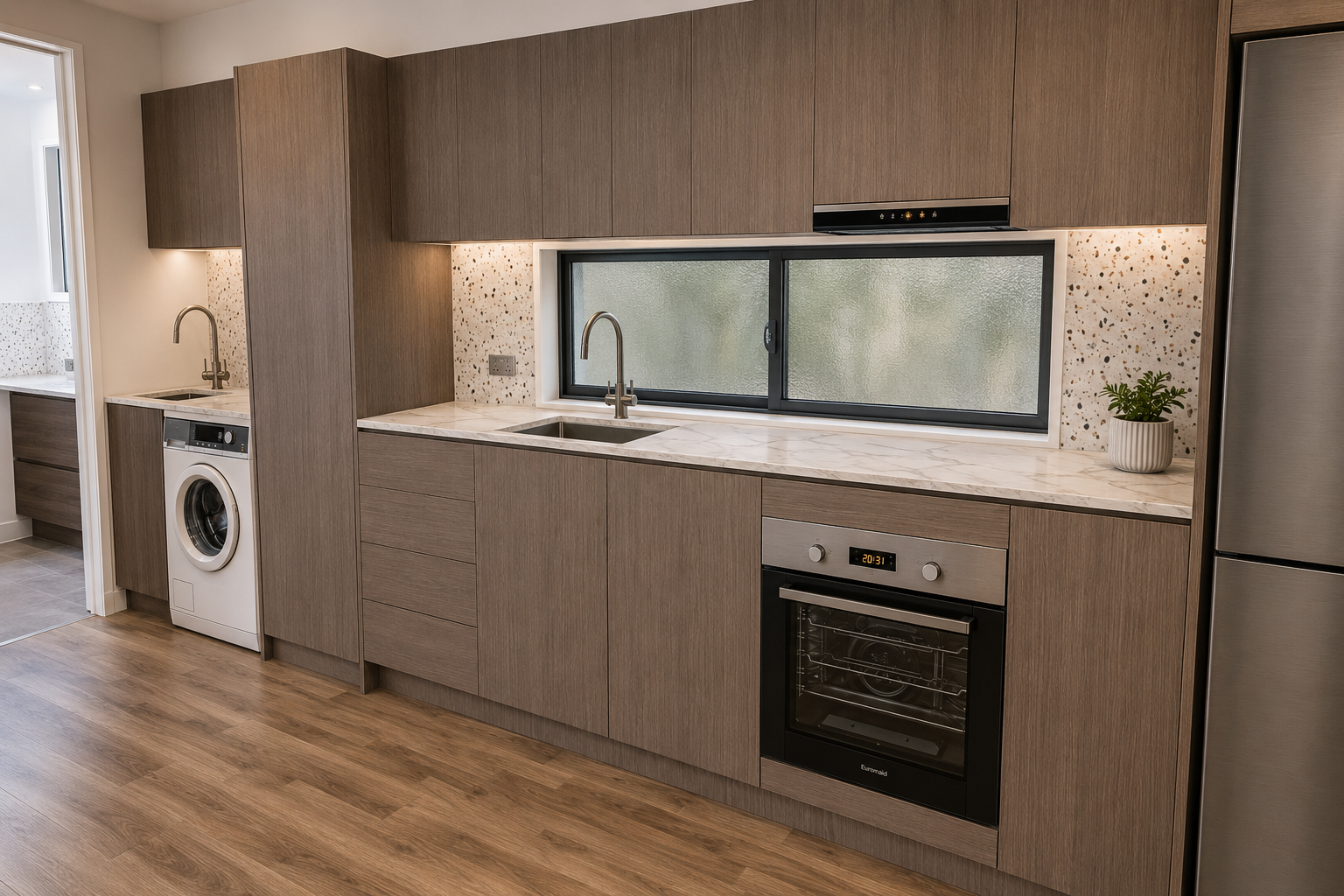

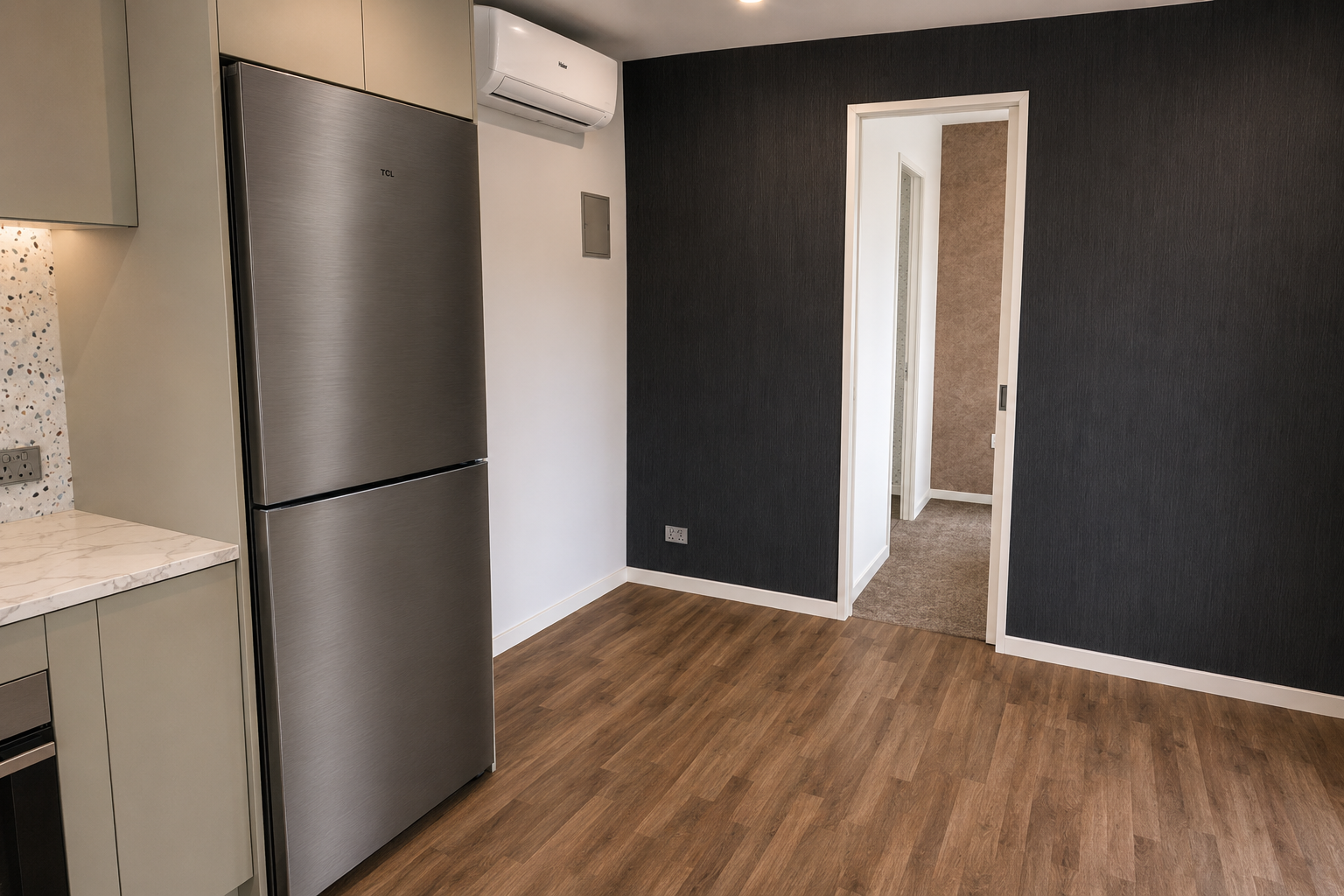

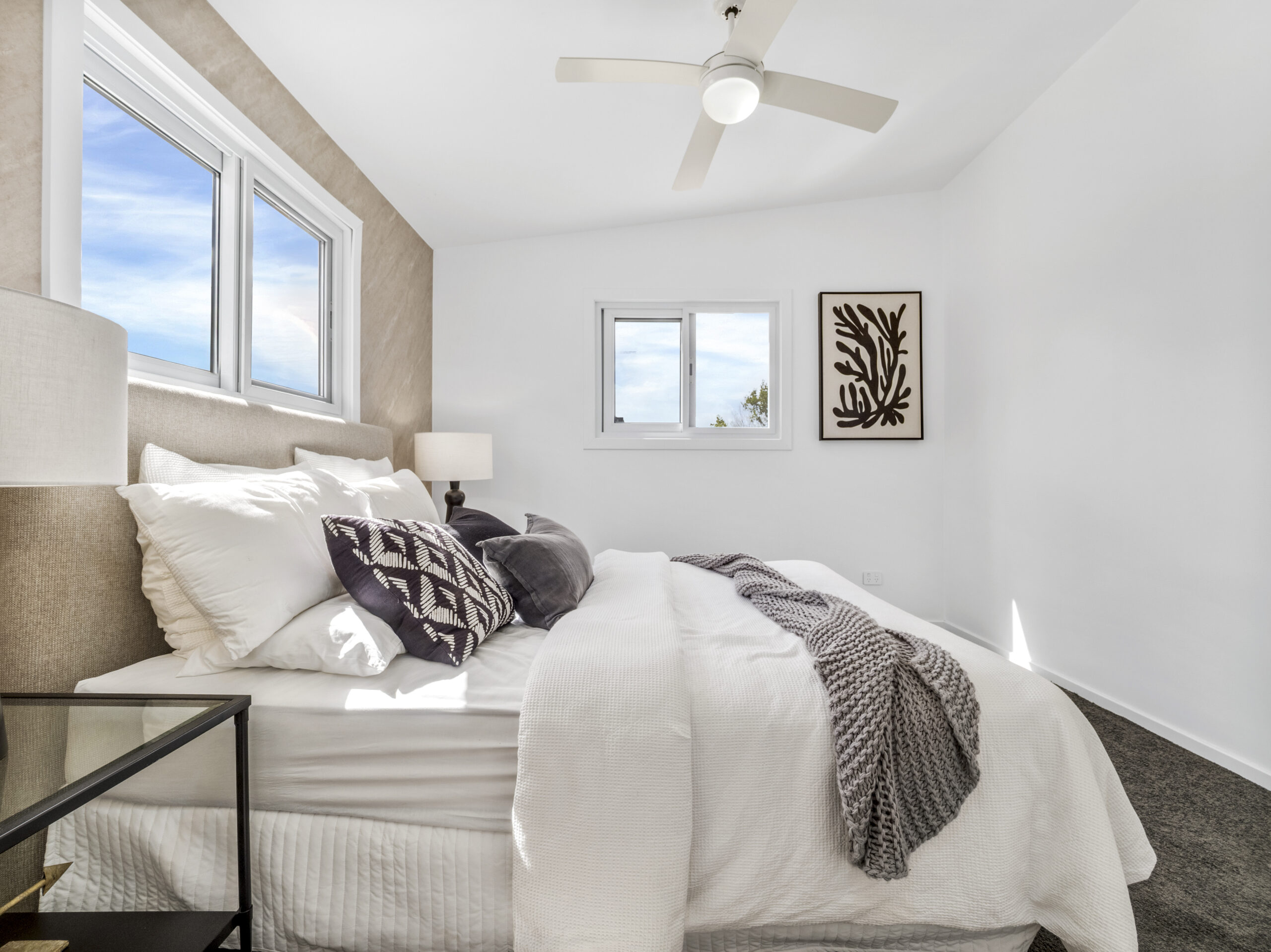

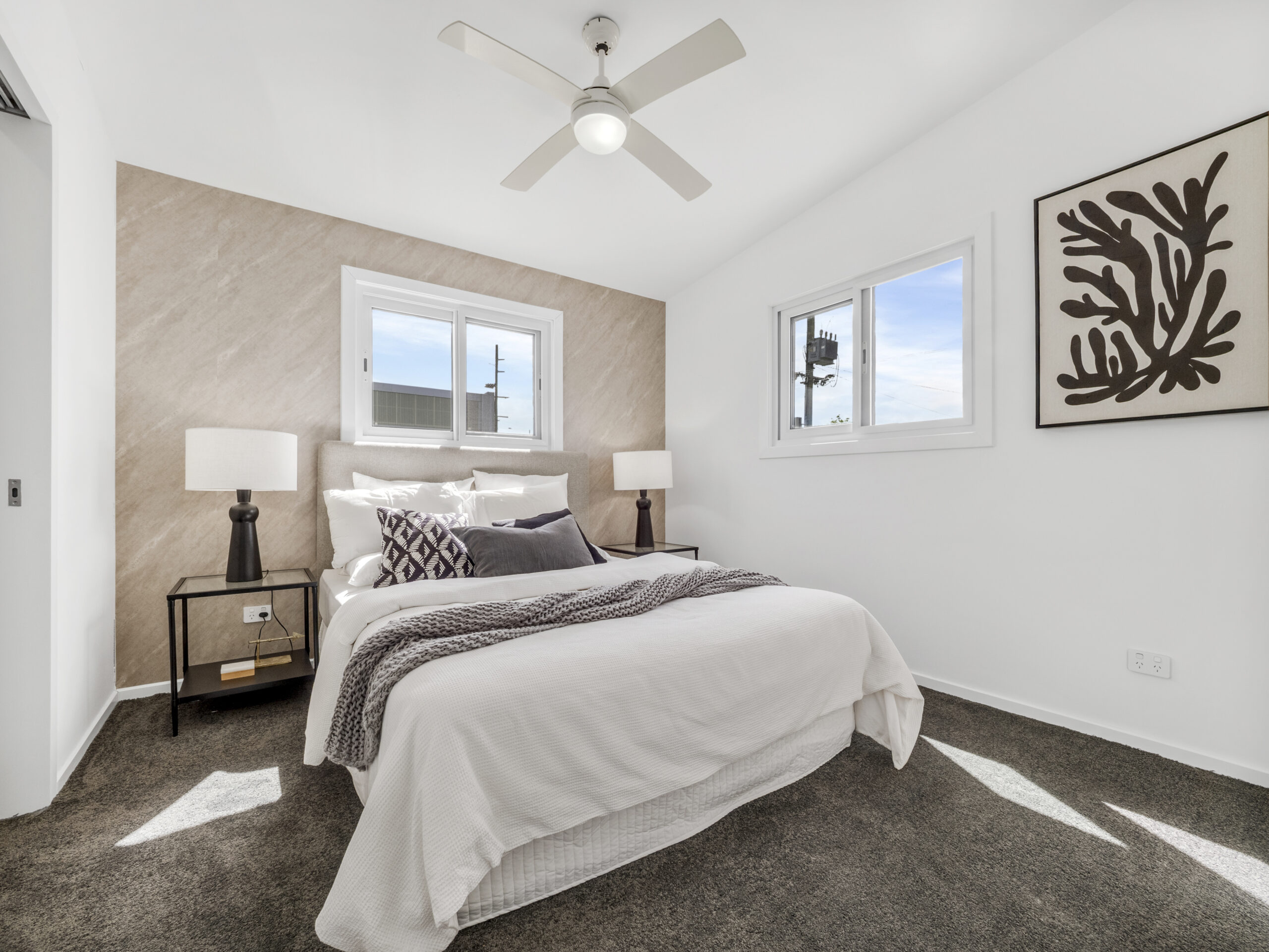

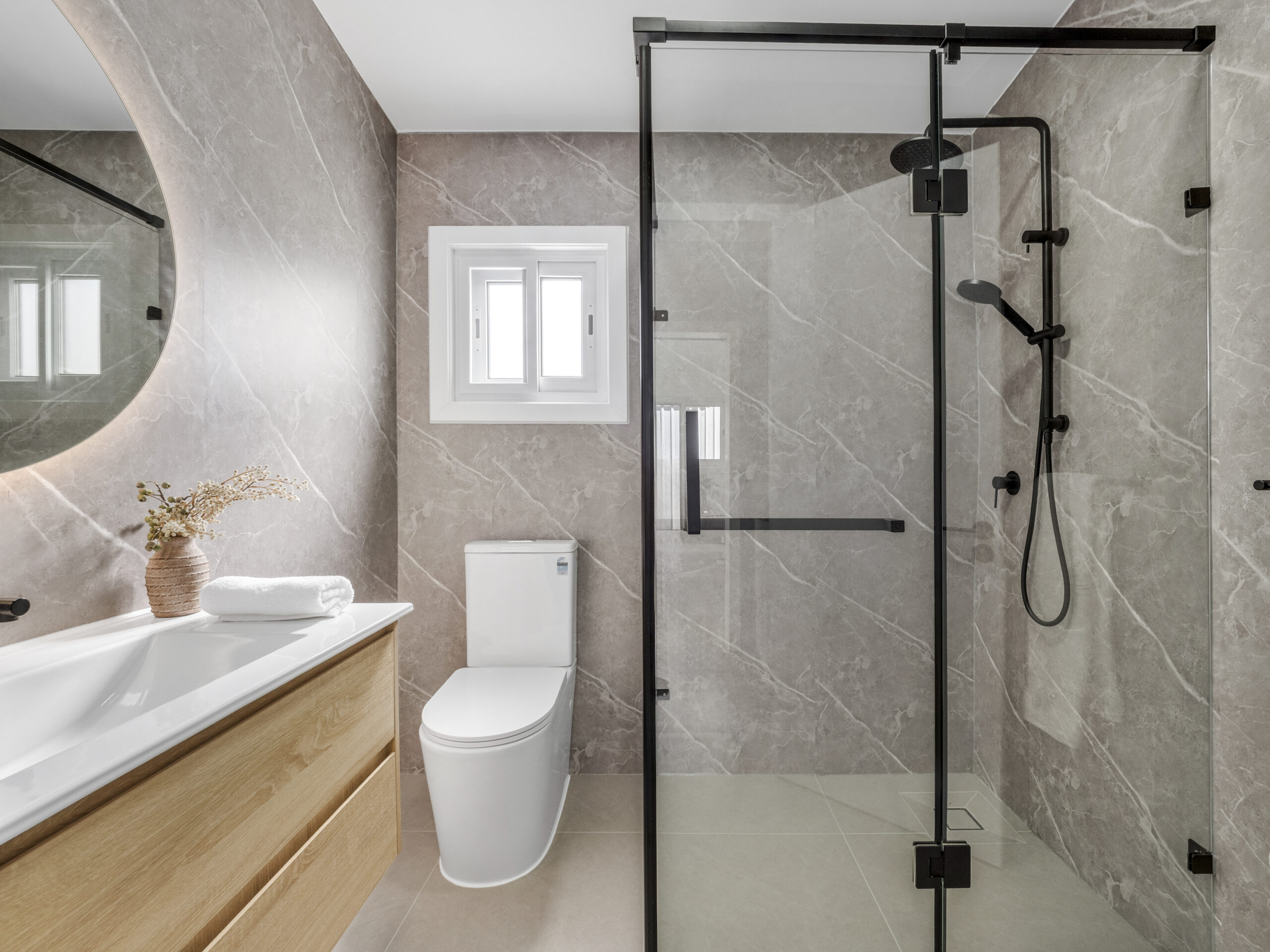

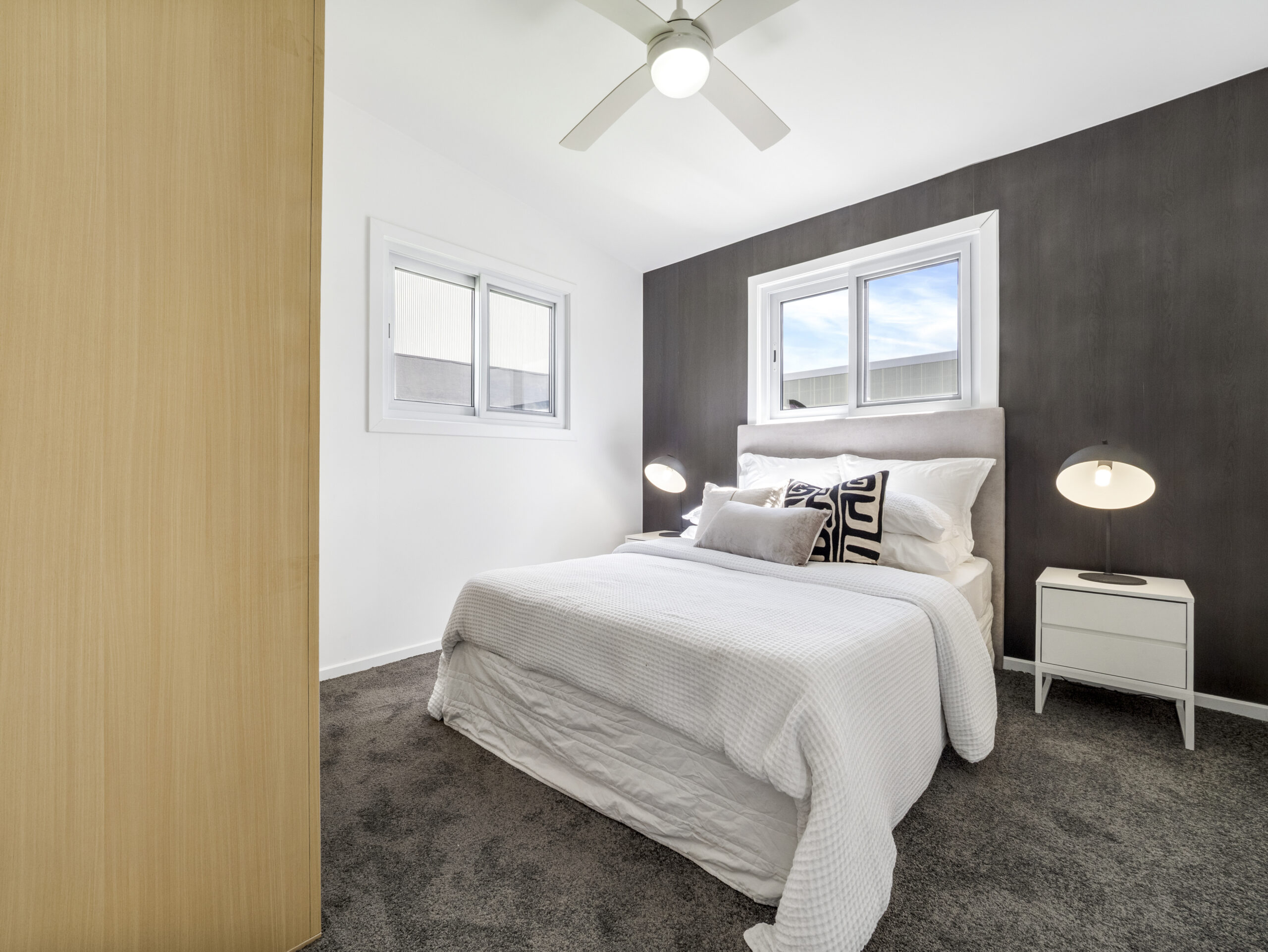

Esperance — photo 1 Esperance — photo 3 Esperance — photo 4 Esperance — photo 5 Esperance — photo 6 Esperance — photo 7 Esperance — photo 8

Floor Plan

Layout & dimensions

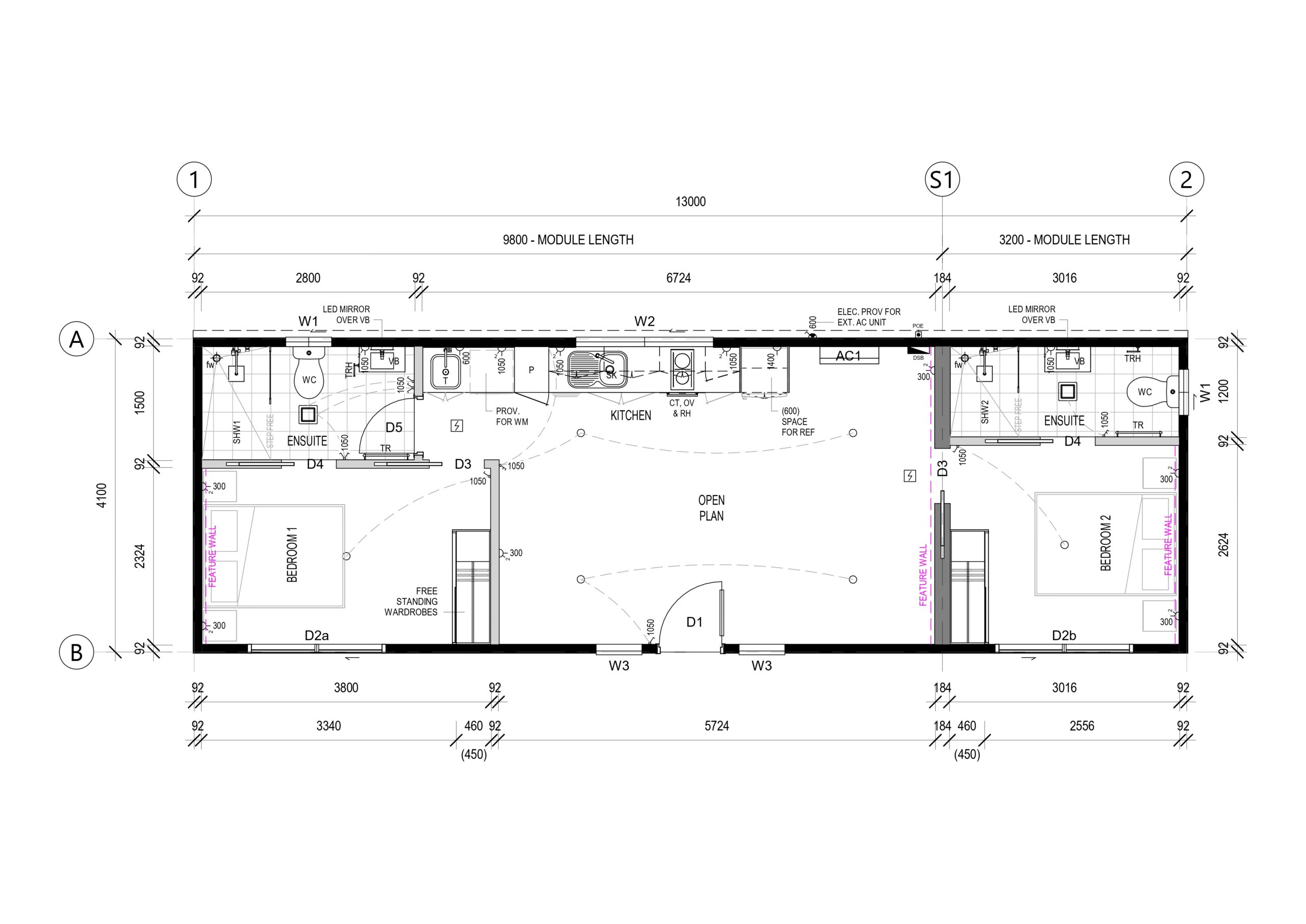

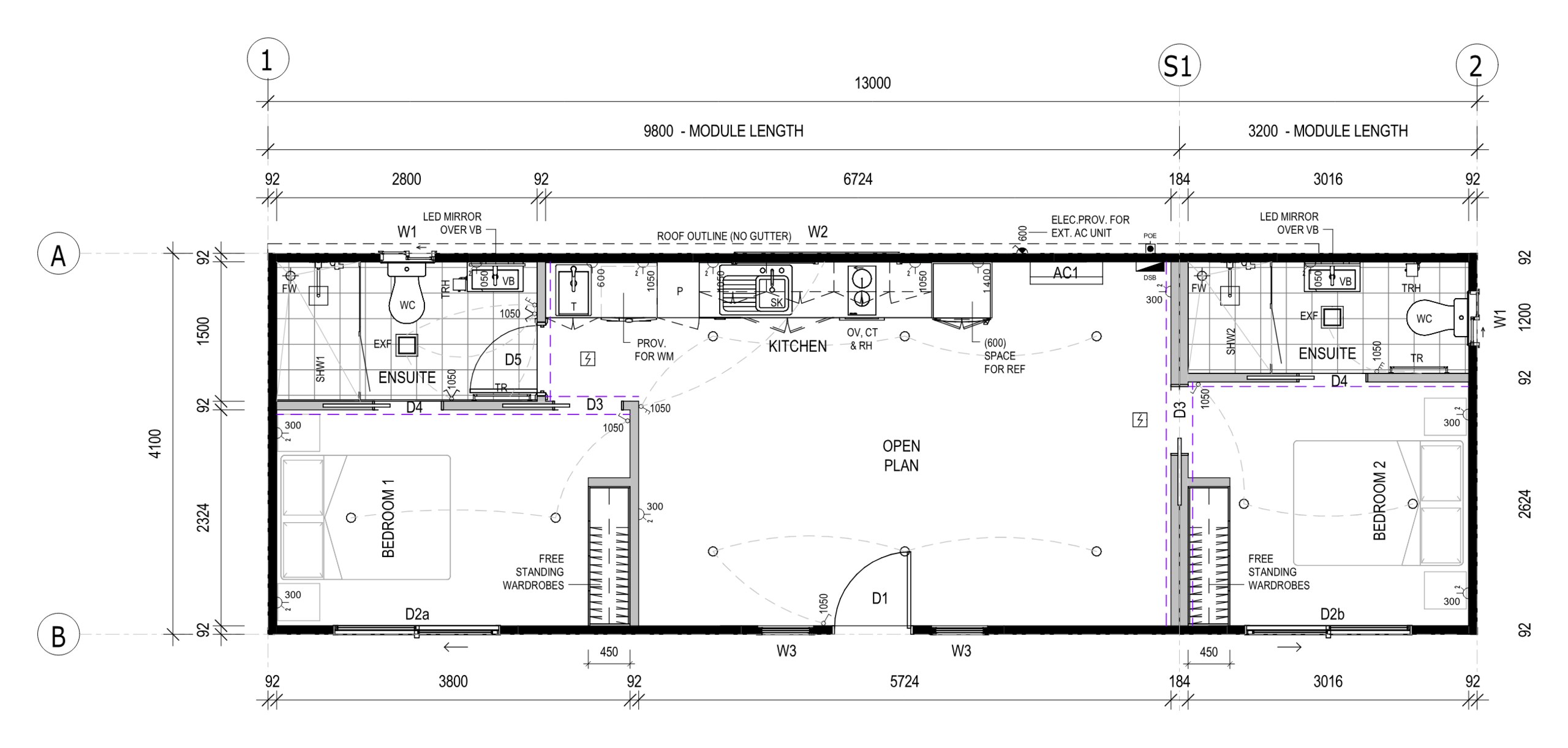

Esperance floor plan

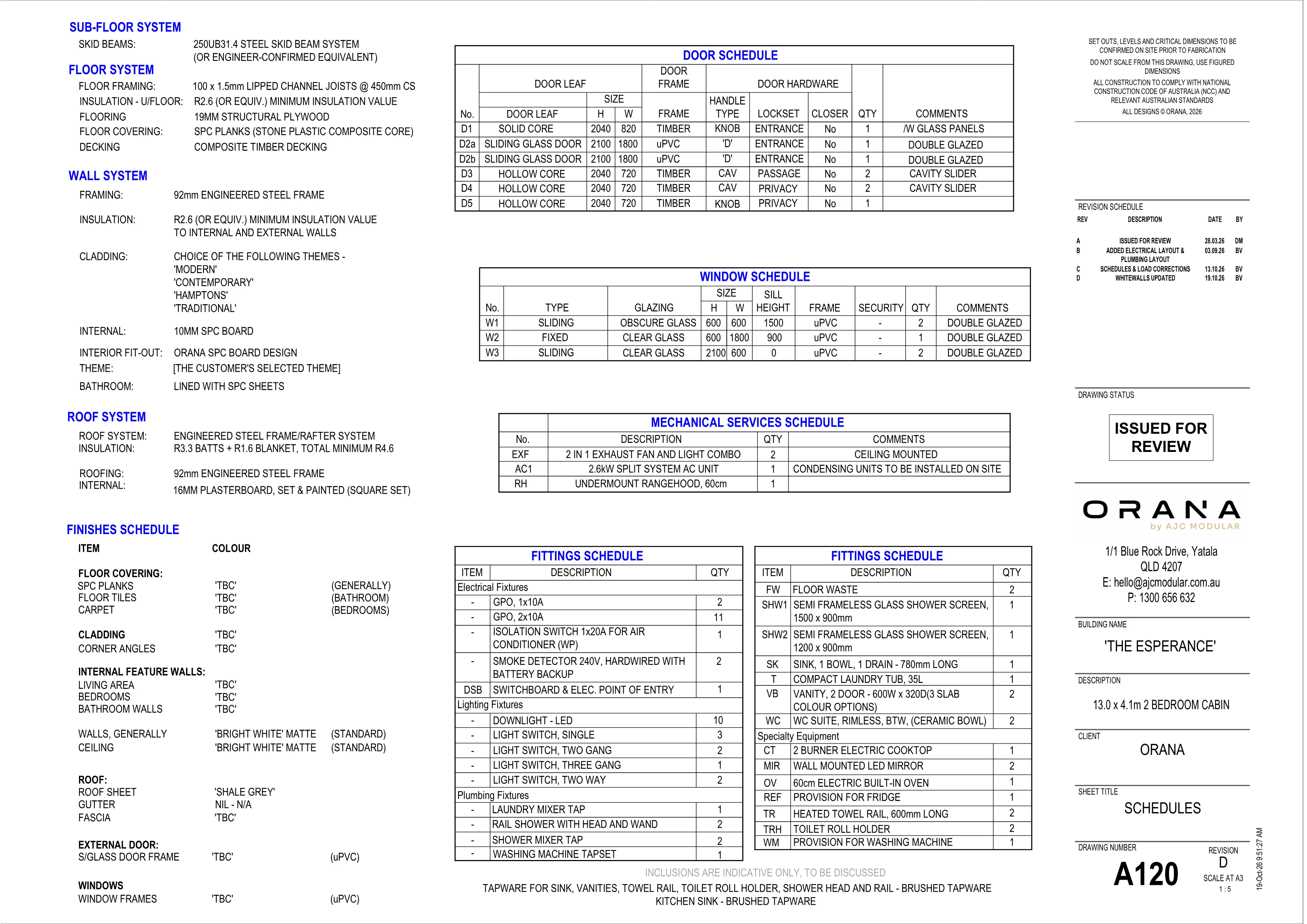

Specifications

Engineered to last

Sub-Floor System

  • Skid beams: W10x22 steel skid beam system

Floor System

  • Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
  • Insulation – u/floor: R15 (or equiv.) minimum insulation value
  • Flooring: 3/4″ structural plywood
  • Floor covering: SPC planks (stone plastic composite core)
  • Decking: Composite timber decking

Wall System

  • Framing: 92mm (or equiv.) engineered steel frame
  • Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
  • Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
  • Internal: 5/8″ drywall, set & painted
  • Bathroom: Lined with SPC sheets

Roof System

  • Roof system: Engineered steel frame/rafter system
  • Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
  • Roofing: Steel panel roofing
  • Internal: 5/8″ drywall, set & painted (square set)
