Byron — ORANA by AJC Modular

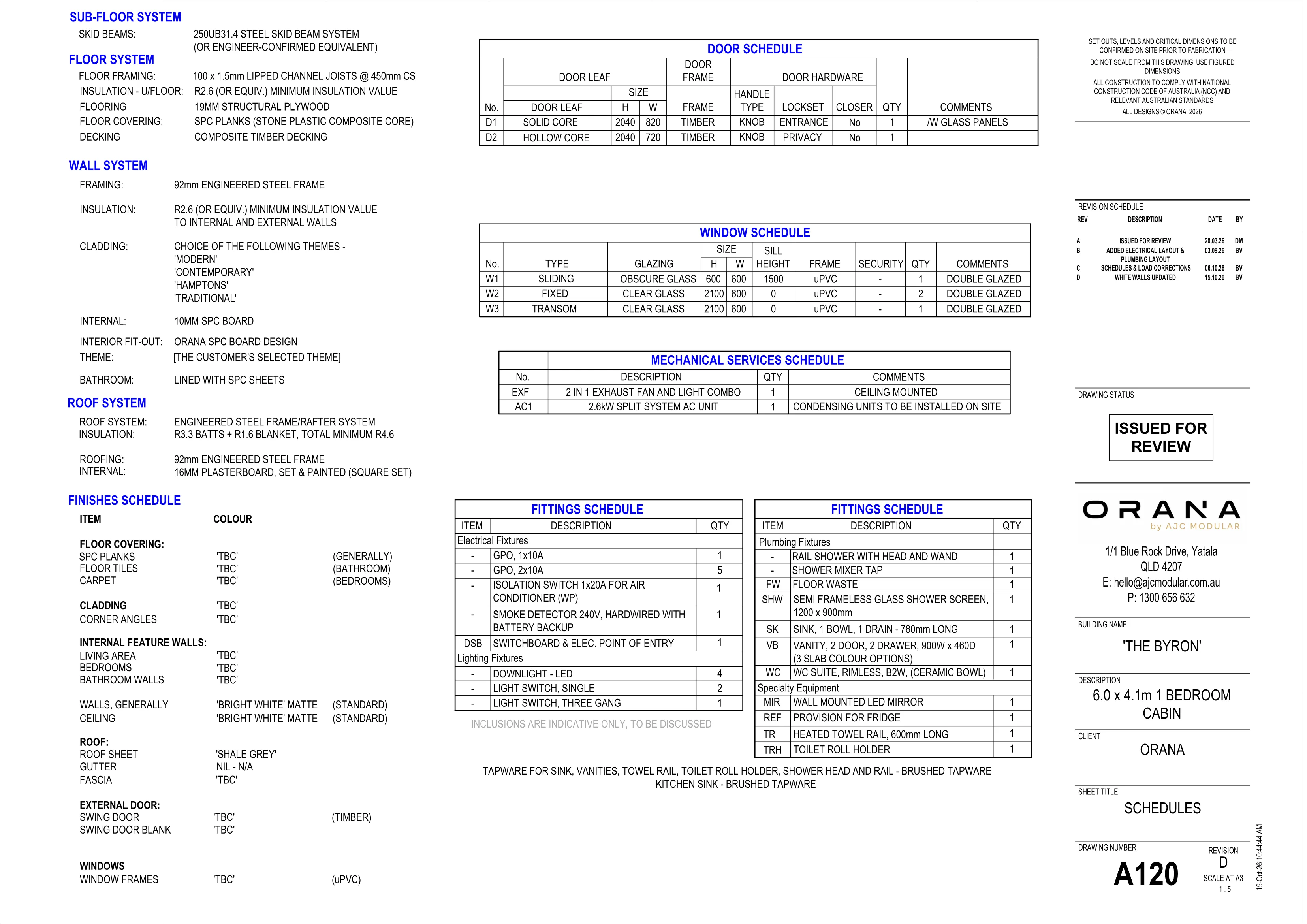

Engineered to last

Sub-Floor System

Skid beams: W10x22 steel skid beam system

Floor System

Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
Insulation – u/floor: R15 (or equiv.) minimum insulation value
Flooring: 3/4″ structural plywood
Floor covering: SPC planks (stone plastic composite core)
Decking: Composite timber decking

Wall System

Framing: 92mm (or equiv.) engineered steel frame
Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
Internal: 5/8″ drywall, set & painted
Bathroom: Lined with SPC sheets

Roof System

Roof system: Engineered steel frame/rafter system
Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
Roofing: Steel panel roofing
Internal: 5/8″ drywall, set & painted (square set)

First — how can we reach you?

So we can send your quote to the right place.

Full name

Phone

When would you like your Modular Home delivered?

A rough window is fine.

ASAP Under 6 Months Over 6 Months

Choose one to continue.

Do you require finance?

We can point you to lenders who know modular builds.

Yes No

Choose one to continue.

What are you most interested in?

Pick the closest fit — we’ll cover the detail on the call.

Modular Homes Modular Granny Flats

Choose one to continue.

Any additional message or questions?

Optional, but the more we know the better our first reply.

Your message optional

By submitting this form you agree to our Terms & Conditions, and to your details being collected and handled in line with our Privacy Policy. You can opt out at any time.

Airlie

The Byron

About the Byron

Inside the Byron

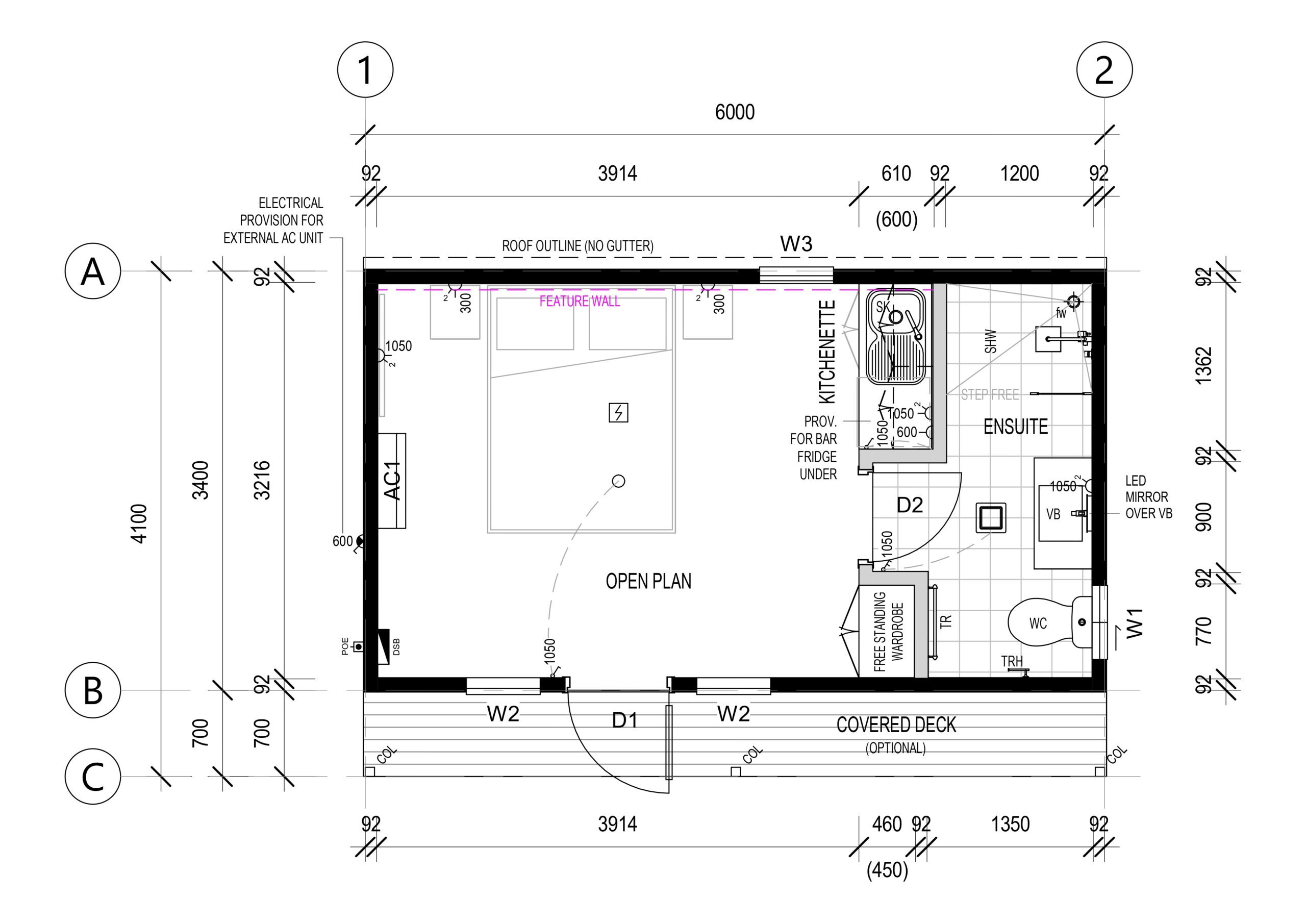

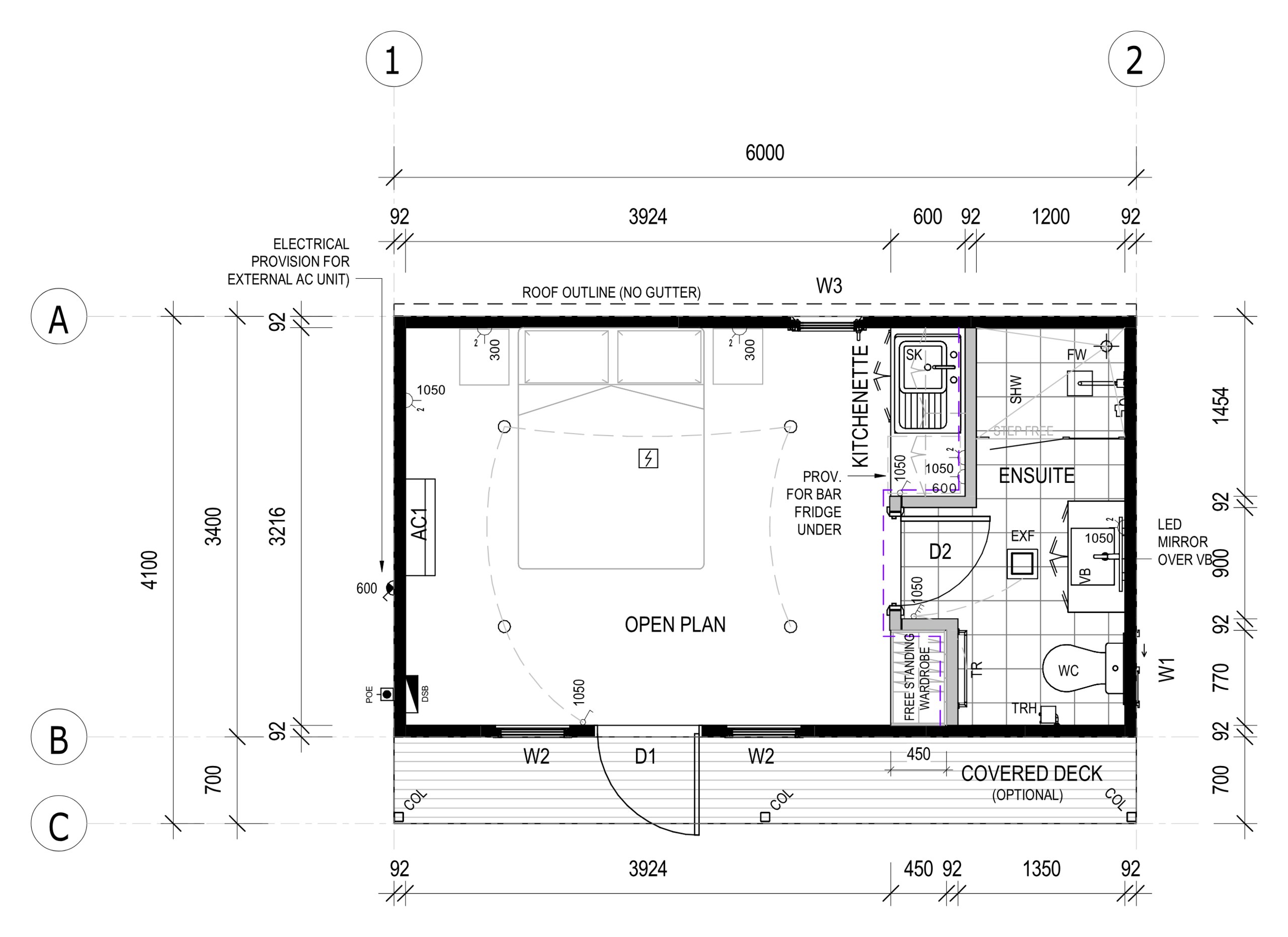

Layout & dimensions
